docker compose con traffic

Traefik requires two configuration files:

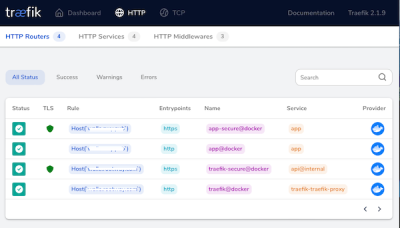

Basic configuration with panel to see traefik active configuration:

#debug: "true"
#logLevel: "DEBUG"

api:
  dashboard: true

entryPoints:
  http:
    address: ":80"
  https:
    address: ":443"

providers:
  docker:
    endpoint: "unix:///var/run/docker.sock"
    exposedByDefault: false

certificatesResolvers:
  http:
    acme:
      email: domains@example.com
      storage: acme.json
      httpChallenge:
        entryPoint: http

An empty storage file for all Let's Encrypt certificates

touch acme.json
chmod 600 acme.json

The access is configured with user admin and password from htpasswd (MD5, SHA1 or BCrypt): htpasswd generator

NOTE 1: pay attention to double $$ at password.

NOTE 2: the domain (host.example.com) must resolve against host, because traefik will start to obtain certificates as soon as it start.

services:
  traefik:
    image: traefik:v2.1
    container_name: traefik
    restart: unless-stopped
    security_opt:
      - no-new-privileges:true
    ports:
      - 80:80
      - 443:443
    volumes:
      - /etc/localtime:/etc/localtime:ro
      - /var/run/docker.sock:/var/run/docker.sock:ro
      - ./traefik.yaml:/traefik.yaml:ro
      - ./acme.json:/acme.json
    labels:
      - "traefik.enable=true"
      - "traefik.http.routers.traefik.entrypoints=http"
      - "traefik.http.routers.traefik.rule=Host(`host.example.com`)"
      - "traefik.http.middlewares.traefik-auth.basicauth.users=admin:$$apr1$$yjlvJ56A$$$R20oIMhPsstfBc8.ZFaW43"
      - "traefik.http.middlewares.traefik-https-redirect.redirectscheme.scheme=https"
      - "traefik.http.routers.traefik.middlewares=traefik-https-redirect"
      - "traefik.http.routers.traefik-secure.entrypoints=https"
      - "traefik.http.routers.traefik-secure.rule=Host(`host.example.com`)"
      - "traefik.http.routers.traefik-secure.middlewares=traefik-auth"
      - "traefik.http.routers.traefik-secure.tls=true"
      - "traefik.http.routers.traefik-secure.tls.certresolver=http"
      - "traefik.http.routers.traefik-secure.service=api@internal"

• Ref: Traefik basicauth

Both the domains

• host.example.com to access traefik panel
• app.example.com to access app with traefik proxy

must resolve against host, because traefik will start to obtain certificates as soon as it start.

services:
  traefik:
    image: traefik:v2.1
    container_name: traefik
    restart: unless-stopped
    security_opt:
      - no-new-privileges:true
    ports:
      - 80:80
      - 443:443
    volumes:
      - /etc/localtime:/etc/localtime:ro
      - /var/run/docker.sock:/var/run/docker.sock:ro
      - ./traefik.yaml:/traefik.yaml:ro
      - ./acme.json:/acme.json
    labels:
      - "traefik.enable=true"
      - "traefik.http.routers.traefik.entrypoints=http"
      - "traefik.http.routers.traefik.rule=Host(`host.example.com`)"
      - "traefik.http.middlewares.traefik-auth.basicauth.users=admin:$$apr1$$ablvJ36A$$Q21oIBhPxftfMc8.ZFeW31"
      - "traefik.http.middlewares.traefik-https-redirect.redirectscheme.scheme=https"
      - "traefik.http.routers.traefik.middlewares=traefik-https-redirect"
      - "traefik.http.routers.traefik-secure.entrypoints=https"
      - "traefik.http.routers.traefik-secure.rule=Host(`host.example.com`)"
      - "traefik.http.routers.traefik-secure.middlewares=traefik-auth"
      - "traefik.http.routers.traefik-secure.tls=true"
      - "traefik.http.routers.traefik-secure.tls.certresolver=http"
      - "traefik.http.routers.traefik-secure.service=api@internal"


  app:
    image: oguzpastirmaci/hostname
    container_name: app
    labels:
      - "traefik.enable=true"
      - "traefik.http.routers.app.entrypoints=http"
      - "traefik.http.routers.app.rule=Host(`app.example.com`)"
      - "traefik.http.middlewares.app-https-redirect.redirectscheme.scheme=https"
      - "traefik.http.routers.app.middlewares=app-https-redirect"
      - "traefik.http.routers.app-secure.entrypoints=https"
      - "traefik.http.routers.app-secure.rule=Host(`app.example.com`)"
      - "traefik.http.routers.app-secure.tls=true"
      - "traefik.http.routers.app-secure.tls.certresolver=http"
      - "traefik.http.routers.app-secure.service=app"
      - "traefik.http.services.app.loadbalancer.server.port=8000"
